ALMA Data Example

Trey V. Wenger (c) December 2024

Here we test bayes_cn_hfs on some real ALMA data and demonstrate a general procedure for determining the carbon isotopic ratio from observations of CN and 13CN.

# General imports
import os
import pickle
import time

import matplotlib.pyplot as plt
import arviz as az
import pandas as pd
import numpy as np
import pymc as pm

print("pymc version:", pm.__version__)

import bayes_spec
print("bayes_spec version:", bayes_spec.__version__)

import bayes_cn_hfs
print("bayes_cn_hfs version:", bayes_cn_hfs.__version__)

# Notebook configuration
pd.options.display.max_rows = None

pymc version: 5.19.1
bayes_spec version: 1.7.2
bayes_cn_hfs version: 1.1.1+2.g81bbbdf.dirty

Load the data

from bayes_spec import SpecData

data_12CN = np.genfromtxt("data_CN.tsv")
data_13CN = np.genfromtxt("data_13CN.tsv")

# estimate noise
noise_12CN = 1.4826 * np.median(np.abs(data_12CN[:, 0] - np.median(data_12CN[:, 0])))
noise_13CN = 1.4826 * np.median(np.abs(data_13CN[:, 0] - np.median(data_13CN[:, 0])))

obs_12CN = SpecData(
    1000.0 * data_12CN[:, 0],
    data_12CN[:, 1],
    noise_12CN,
    xlabel=r"LSRK Frequency (MHz)",
    ylabel=r"$T_{B,\,\rm CN}$ (K)",
)
obs_13CN = SpecData(
    1000.0 * data_13CN[:, 0],
    data_13CN[:, 1],
    noise_13CN,
    xlabel=r"LSRK Frequency (MHz)",
    ylabel=r"$T_{B,\,^{13}\rm CN}$ (K)",
)
data = {"12CN": obs_12CN, "13CN": obs_13CN}

for label, dataset in data.items():
    print(label, len(dataset.spectral))
    # HACK: normalize data by noise
    dataset._brightness_offset = np.median(dataset.brightness)
    dataset._brightness_scale = dataset.noise

# subset of 12CN data
data_12CN = {
    label: data[label]
    for label in data.keys() if "12CN" in label
}

# Plot the data

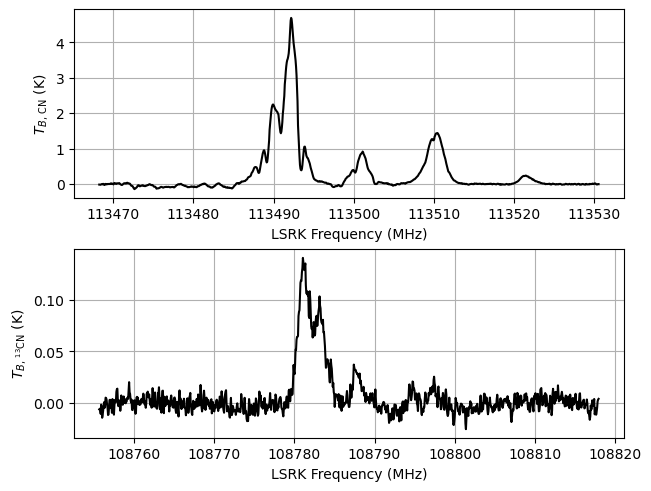

fig, axes = plt.subplots(2, layout="constrained")
axes[0].plot(data["12CN"].spectral, data["12CN"].brightness, 'k-')
axes[1].plot(data["13CN"].spectral, data["13CN"].brightness, 'k-')
axes[0].set_xlabel(data["12CN"].xlabel)
axes[1].set_xlabel(data["13CN"].xlabel)
axes[0].set_ylabel(data["12CN"].ylabel)
_ = axes[1].set_ylabel(data["13CN"].ylabel)

12CN 1021
13CN 1021

Inspecting the CN data

Can we constrain the excitation temperature and optical depth? How about the hyperfine anomalies? It seems like there are two cloud components, so let’s explore the data with that assumption for now. We assume make the weak LTE assumption such that the kinetic temperature is equal to the mean cloud excitation temperature. We are otherwise unable to constrain the kinetic temperature because non-thermal broadening is important and we have poor spectral resolution.

from bayes_cn_hfs.cn_model import CNModel
from bayes_cn_hfs import supplement_mol_data

mol_data_12CN, mol_weight_12CN = supplement_mol_data("CN")

n_clouds = 6
baseline_degree = 0
model = CNModel(
    data_12CN,
    molecule="CN", # molecule name
    mol_data=mol_data_12CN, # molecular data
    bg_temp = 2.7, # assumed background temperature (K)
    Beff=1.0, # Main beam efficiency
    Feff=1.0, # Forward efficiency
    n_clouds=n_clouds,
    baseline_degree=baseline_degree,
    seed=1234,
    verbose=True
)
model.add_priors(
    prior_log10_N = [14.0, 0.25], # mean and width of log10 total column density prior (cm-2)
    prior_log10_Tkin = None, # ignored because kinetic temperature is fixed
    prior_velocity = [-3.0, 5.0], # mean and width of velocity prior (km/s)
    prior_fwhm_nonthermal = 1.0, # width of non-thermal broadening prior (km/s)
    prior_fwhm_L = 1.0, # width of latent Lorentzian FWHM prior (km/s) TIP: set to typical feature separation
    prior_rms = None, # do not infer spectral rms
    prior_baseline_coeffs = None, # use default baseline priors
    assume_LTE = False, # do not assume LTE
    prior_log10_Tex = [0.75, 0.1], # mean and width of excitation temperature prior (K)
    assume_CTEX = False, # do not assume CTEX
    prior_LTE_precision = 1000.0, # width of LTE precision prior
    fix_log10_Tkin = 1.5, # fix the kinetic temperature (K)
    ordered = False, # do not assume optically-thin
)
model.add_likelihood()

from bayes_spec.plots import plot_predictive

# prior predictive check
prior = model.sample_prior_predictive(
    samples=100,  # prior predictive samples
)

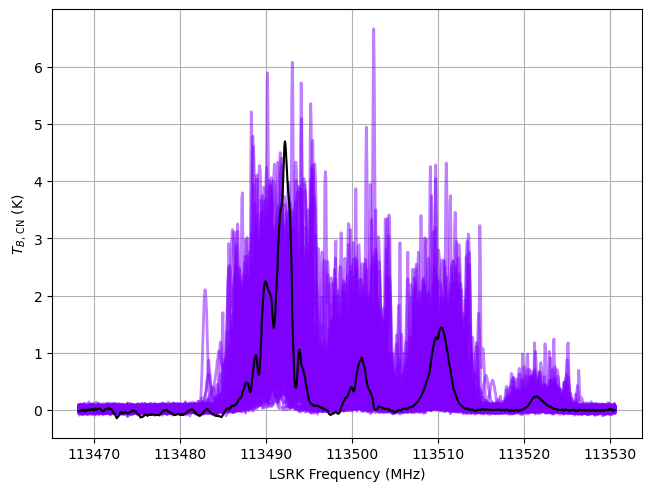

_ = plot_predictive(model.data, prior.prior_predictive)

Sampling: [12CN, LTE_precision, baseline_12CN_norm, fwhm_L_norm, fwhm_nonthermal_norm, log10_N_norm, log10_Tex_ul_norm, velocity_norm, weights]

start = time.time()
model.fit(
    n = 20_000, # maximum number of VI iterations
    draws = 1_000, # number of posterior samples
    rel_tolerance = 0.01, # VI relative convergence threshold
    abs_tolerance = 0.05, # VI absolute convergence threshold
    learning_rate = 0.02, # VI learning rate
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")

Finished [100%]: Average Loss = 533.67

Runtime: 2.68 minutes

# ignore transition and state dependent parameters
var_names = [
    param for param in model.cloud_deterministics
    if not set(model.model.named_vars_to_dims[param]).intersection(set(["transition", "state"]))
]
pm.summary(model.trace.posterior, var_names=var_names + model.hyper_freeRVs + model.baseline_freeRVs)

arviz - WARNING - Shape validation failed: input_shape: (1, 1000), minimum_shape: (chains=2, draws=4)

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
velocity[0]	-2.841	0.020	-2.876	-2.804	0.001	0.000	872.0	907.0	NaN
velocity[1]	-6.163	0.003	-6.169	-6.156	0.000	0.000	1221.0	944.0	NaN
velocity[2]	-7.379	0.006	-7.391	-7.370	0.000	0.000	695.0	861.0	NaN
velocity[3]	-4.291	0.005	-4.299	-4.282	0.000	0.000	1099.0	981.0	NaN
velocity[4]	-2.317	0.004	-2.325	-2.311	0.000	0.000	999.0	832.0	NaN
velocity[5]	-2.790	0.005	-2.799	-2.781	0.000	0.000	1007.0	919.0	NaN
fwhm_thermal[0]	0.236	0.000	0.236	0.236	0.000	0.000	1000.0	1000.0	NaN
fwhm_thermal[1]	0.236	0.000	0.236	0.236	0.000	0.000	1000.0	1000.0	NaN
fwhm_thermal[2]	0.236	0.000	0.236	0.236	0.000	0.000	1000.0	1000.0	NaN
fwhm_thermal[3]	0.236	0.000	0.236	0.236	0.000	0.000	1000.0	1000.0	NaN
fwhm_thermal[4]	0.236	0.000	0.236	0.236	0.000	0.000	1000.0	1000.0	NaN
fwhm_thermal[5]	0.236	0.000	0.236	0.236	0.000	0.000	1000.0	1000.0	NaN
fwhm_nonthermal[0]	8.264	0.038	8.183	8.326	0.001	0.001	932.0	967.0	NaN
fwhm_nonthermal[1]	1.540	0.008	1.527	1.556	0.000	0.000	982.0	870.0	NaN
fwhm_nonthermal[2]	2.482	0.010	2.461	2.500	0.000	0.000	907.0	983.0	NaN
fwhm_nonthermal[3]	1.618	0.007	1.606	1.631	0.000	0.000	1048.0	942.0	NaN
fwhm_nonthermal[4]	2.077	0.009	2.062	2.094	0.000	0.000	1063.0	973.0	NaN
fwhm_nonthermal[5]	7.238	0.007	7.227	7.251	0.000	0.000	956.0	983.0	NaN
fwhm[0]	8.267	0.038	8.187	8.330	0.001	0.001	932.0	967.0	NaN
fwhm[1]	1.558	0.008	1.545	1.574	0.000	0.000	982.0	870.0	NaN
fwhm[2]	2.493	0.010	2.473	2.511	0.000	0.000	907.0	983.0	NaN
fwhm[3]	1.636	0.007	1.623	1.648	0.000	0.000	1048.0	942.0	NaN
fwhm[4]	2.091	0.009	2.075	2.107	0.000	0.000	1063.0	973.0	NaN
fwhm[5]	7.242	0.007	7.230	7.254	0.000	0.000	956.0	983.0	NaN
log10_N[0]	14.005	0.002	14.003	14.009	0.000	0.000	977.0	872.0	NaN
log10_N[1]	13.503	0.002	13.499	13.507	0.000	0.000	1001.0	1015.0	NaN
log10_N[2]	13.659	0.001	13.657	13.662	0.000	0.000	939.0	990.0	NaN
log10_N[3]	13.385	0.002	13.381	13.389	0.000	0.000	971.0	826.0	NaN
log10_N[4]	13.751	0.001	13.748	13.753	0.000	0.000	1035.0	942.0	NaN
log10_N[5]	13.897	0.000	13.897	13.898	0.000	0.000	1101.0	942.0	NaN
log10_Tex_ul[0]	0.814	0.087	0.654	0.986	0.003	0.002	947.0	906.0	NaN
log10_Tex_ul[1]	0.515	0.054	0.418	0.618	0.002	0.001	1052.0	992.0	NaN
log10_Tex_ul[2]	0.503	0.062	0.390	0.621	0.002	0.001	948.0	896.0	NaN
log10_Tex_ul[3]	0.865	0.083	0.713	1.016	0.003	0.002	1024.0	983.0	NaN
log10_Tex_ul[4]	0.605	0.070	0.478	0.735	0.002	0.002	996.0	940.0	NaN
log10_Tex_ul[5]	0.891	0.093	0.708	1.065	0.003	0.002	934.0	975.0	NaN
tau_total[0]	2.209	0.016	2.178	2.237	0.000	0.000	986.0	941.0	NaN
tau_total[1]	1.727	0.017	1.696	1.756	0.001	0.000	1053.0	912.0	NaN
tau_total[2]	3.334	0.013	3.308	3.357	0.000	0.000	1059.0	867.0	NaN
tau_total[3]	0.367	0.005	0.358	0.377	0.000	0.000	961.0	1005.0	NaN
tau_total[4]	2.665	0.044	2.580	2.743	0.001	0.001	1064.0	1071.0	NaN
tau_total[5]	-2.528	0.008	-2.543	-2.515	0.000	0.000	1012.0	941.0	NaN
fwhm_L_norm	0.025	0.008	0.012	0.040	0.000	0.000	955.0	779.0	NaN
baseline_12CN_norm[0]	-1.471	0.034	-1.531	-1.403	0.001	0.001	1009.0	982.0	NaN

posterior = model.sample_posterior_predictive(
    thin=100, # keep one in {thin} posterior samples
)

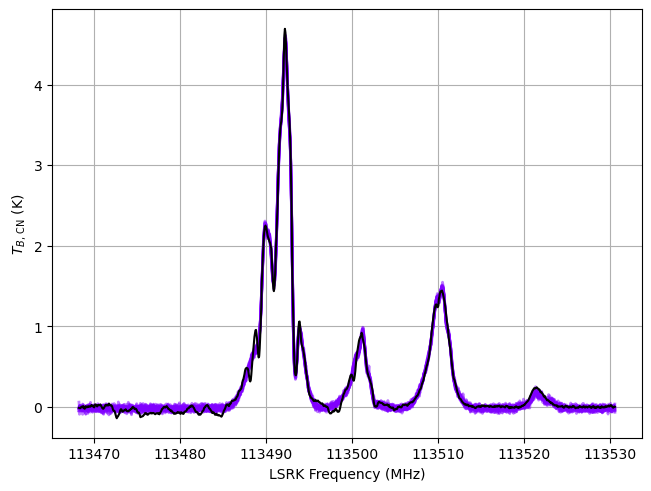

_ = plot_predictive(model.data, posterior.posterior_predictive)

Sampling: [12CN]

Number of cloud components

from bayes_spec import Optimize

max_n_clouds = 10
baseline_degree = 0
opt = Optimize(
    CNModel,
    data_12CN,
    molecule="CN", # molecule name
    mol_data=mol_data_12CN, # molecular data
    bg_temp = 2.7, # assumed background temperature (K)
    Beff=1.0, # Main beam efficiency
    Feff=1.0, # Forward efficiency
    max_n_clouds=max_n_clouds,
    baseline_degree=baseline_degree,
    seed=1234,
    verbose=True
)
opt.add_priors(
    prior_log10_N = [14.0, 0.25], # mean and width of log10 total column density prior (cm-2)
    prior_log10_Tkin = None, # ignored because kinetic temperature is fixed
    prior_velocity = [-3.0, 5.0], # mean and width of velocity prior (km/s)
    prior_fwhm_nonthermal = 1.0, # width of non-thermal broadening prior (km/s)
    prior_fwhm_L = 1.0, # width of latent Lorentzian FWHM prior (km/s) TIP: set to typical feature separation
    prior_rms = None, # do not infer spectral rms
    prior_baseline_coeffs = None, # use default baseline priors
    assume_LTE = False, # do not assume LTE
    prior_log10_Tex = [0.75, 0.1], # mean and width of excitation temperature prior (K)
    assume_CTEX = False, # do not assume CTEX
    prior_LTE_precision = 1000.0, # width of LTE precision prior
    fix_log10_Tkin = 1.5, # fix the kinetic temperature (K)
    ordered = False, # do not assume optically-thin
)
opt.add_likelihood()

from bayes_spec.plots import plot_predictive

# prior predictive check
prior = opt.models[1].sample_prior_predictive(
    samples=100,  # prior predictive samples
)

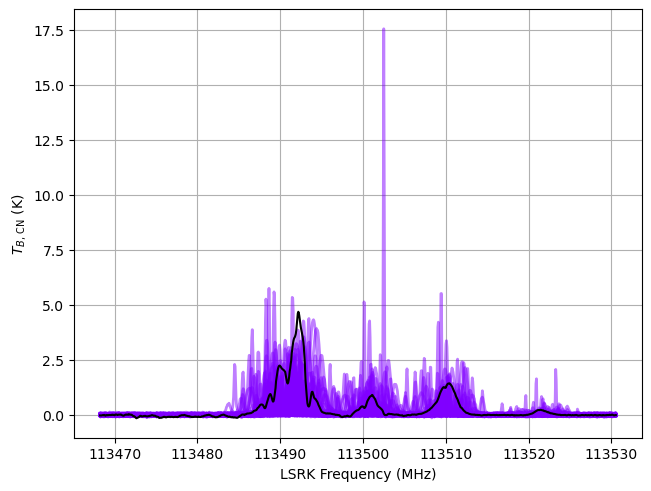

_ = plot_predictive(opt.models[1].data, prior.prior_predictive)

Sampling: [12CN, LTE_precision, baseline_12CN_norm, fwhm_L_norm, fwhm_nonthermal_norm, log10_N_norm, log10_Tex_ul_norm, velocity_norm, weights]

Approximate all models with variational inference.

start = time.time()
fit_kwargs = {
    "n": 20_000,
    "rel_tolerance": 0.01,
    "abs_tolerance": 0.05,
    "learning_rate": 0.02,
}
opt.fit_all(**fit_kwargs)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")

Null hypothesis BIC = 9.837e+05
Approximating n_cloud = 1 posterior...

Finished [100%]: Average Loss = 25,926

n_cloud = 1 BIC = 5.952e+04

Approximating n_cloud = 2 posterior...

Finished [100%]: Average Loss = 14,433

n_cloud = 2 BIC = 3.122e+04

Approximating n_cloud = 3 posterior...

Finished [100%]: Average Loss = 6,979.5

n_cloud = 3 BIC = 1.077e+04

Approximating n_cloud = 4 posterior...

Finished [100%]: Average Loss = 5,383.5

n_cloud = 4 BIC = 6.806e+03

Approximating n_cloud = 5 posterior...

Finished [100%]: Average Loss = 1,669.4

n_cloud = 5 BIC = 1.830e+03

Approximating n_cloud = 6 posterior...

Finished [100%]: Average Loss = 533.67

n_cloud = 6 BIC = -1.968e+00

Approximating n_cloud = 7 posterior...

Finished [100%]: Average Loss = 1,500.3

n_cloud = 7 BIC = 1.939e+03

Approximating n_cloud = 8 posterior...

Finished [100%]: Average Loss = 343.3

n_cloud = 8 BIC = -3.888e+02

Approximating n_cloud = 9 posterior...

Finished [100%]: Average Loss = -361.63

n_cloud = 9 BIC = -1.662e+03

Approximating n_cloud = 10 posterior...

Finished [100%]: Average Loss = -521.79

n_cloud = 10 BIC = -1.525e+03

Runtime: 25.33 minutes

null_bic = opt.models[1].null_bic()
n_clouds = np.arange(max_n_clouds+1)
bics_vi = np.array([null_bic] + [model.bic(chain=0) for model in opt.models.values()])
print(bics_vi)

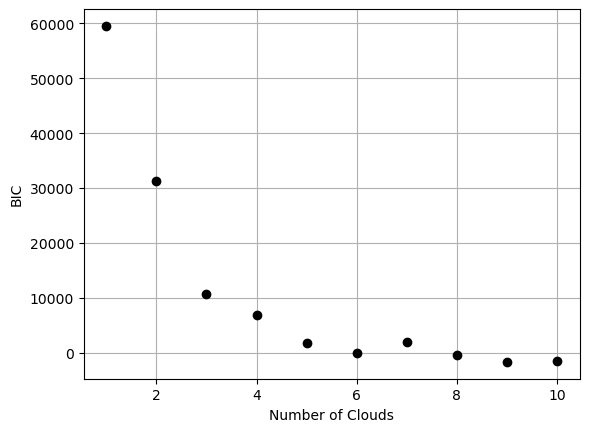

plt.plot(n_clouds[1:], bics_vi[1:], 'ko')
plt.xlabel("Number of Clouds")
_ = plt.ylabel("BIC")

[ 9.83688523e+05  5.95200559e+04  3.12208929e+04  1.07687710e+04
  6.80598056e+03  1.82960053e+03 -1.96767126e+00  1.93949664e+03
 -3.88770599e+02 -1.66173758e+03 -1.52473788e+03]

The strange baseline structure makes it too difficult to identify the optimal number of clouds.
